1IC 7243

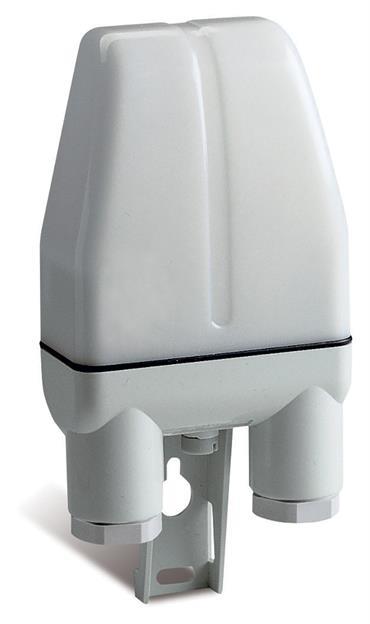

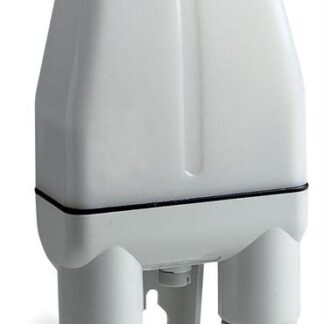

Photocell lighting control switch with replaceable control module for wall-mounting and/or pole installation
Product being particularly suitable to facilitate system maintenance personnel: the control part that can be removed from the base of the contacts allows a quick intervention in the product without disconnecting the load
TECHNICAL SPECIFICATIONS
Power supply 230V a.c. 50/60Hz
Outdoor installation
Output 1 polarized NO contact: 16 (2) A / 250Va.c.
Connection with cables up to 2.5 mm2
Wiring with shielded cable diameter 7-11 mm
Pre-calibrated at the factory at 10 Lux ± 20%
Intervention threshold adjustment trimmer, 2 – 200 Lux
Threshold signalling LED
Anti-UV opaline housing
Protection degree IP 65

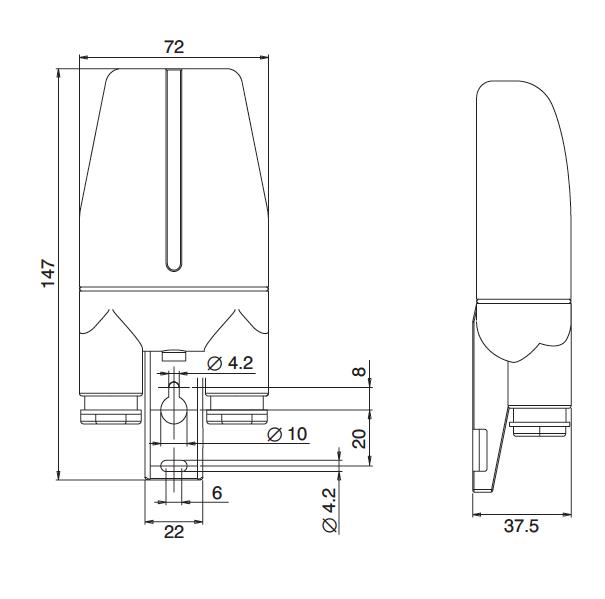

Dimensions (L x W x H) 72 x 37.5 x 147 mm
