1IO 4091

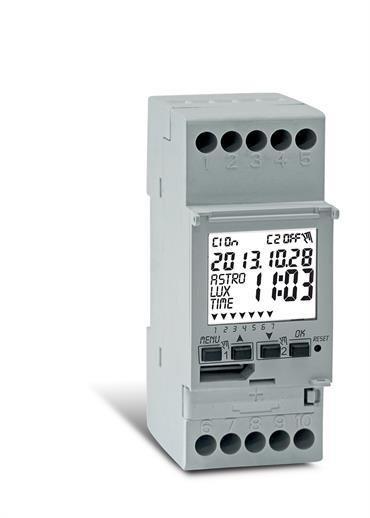

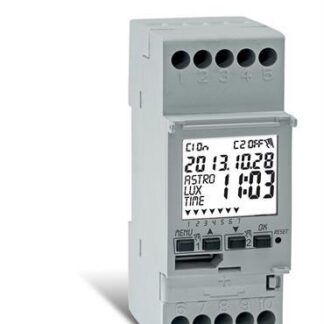

Astronomical twilight time switch 1 channel – 2 DIN
TECHNICAL SPECIFICATIONS
Power supply 230V a.c.+/-10%, 50Hz
Nominal data contats 16 (2) A / 250V a.c.
Max number of programs (ON+OFF) 45
Minimum ON-OFF engaging time 1 minute

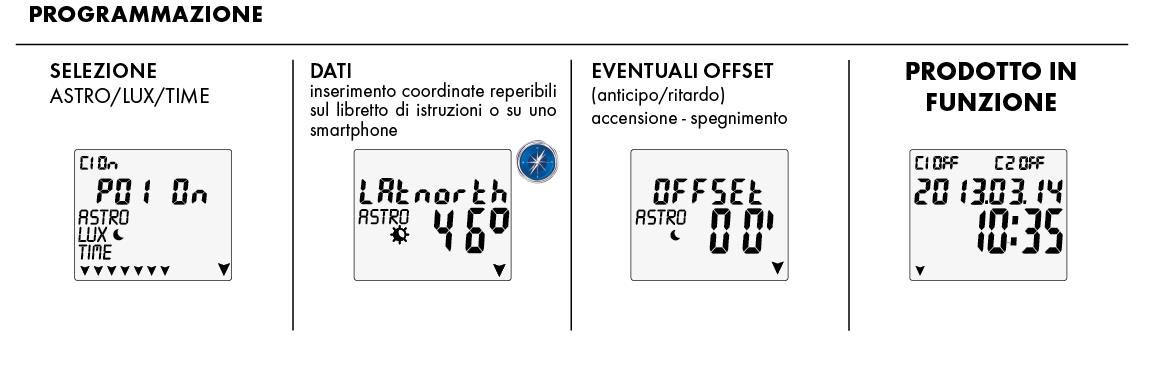

Details shown on 1″ 1/3 backlit LCD display
Max switching power 3500 VA (for each contact)
Power: LP incandescence 2300 W
Power: LP fluorescent tubes uncompensated 1000 W
Power: LP fluorescent tubes in parallel, compensated 500W (total capacity 70 μF)
Power: compact LP fluorescent tubes 600W
Max size of cables at terminals 6 mm2
Protection rating (IP) IP 20 – IP 40 (rear swithcboard)
Type of output terminals with captive screws
Insulation class II
Relay ON / OFF signal ON / OFF on LCD display
Power reserve 6 years
Type of reserve CR2032 replaceable battery
Time tolerance ± 1 sec / day
Operating temperature range -20°C / +60°C
Storage temperature -30°C / +80°C
Type of installation DIN rail / rear switchboard
Housing thermoplastic – RAL 7035 grey
Type of use civil / service / industrial
Controls programming keys, ON / OFF manual override key
Precision time setting digital in hours / minutes
Daylight saving time change for 4 geographic areas
Digital programming in hours / minutes

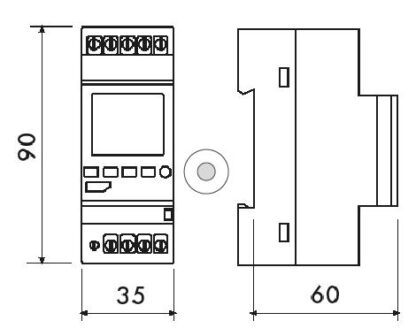

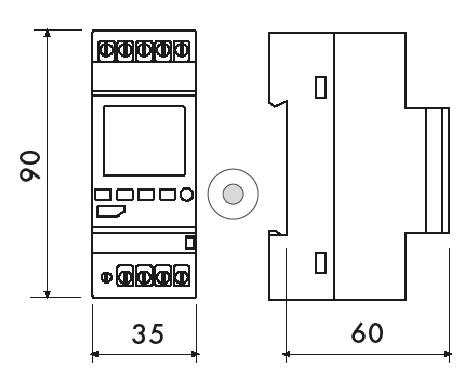

Dimensions (L x W x H) mm 35 x 60 x 30
Accessories
1PR 6092
1PR EMD01
