1IO 0171

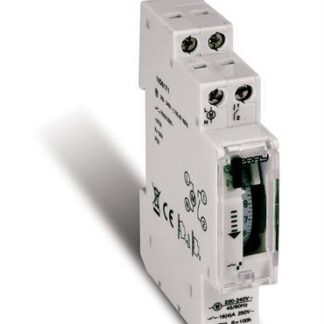

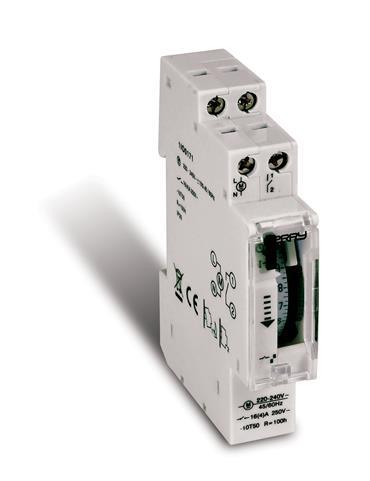

Daily time switch with tappets and charge reserve – 1 DIN
TECHNICAL SPECIFICATIONS
Power supply voltage 230V a.c. 50 – 60Hz
Contact rated data 16 (2) A / 250V a.c.
Max program number (ON-OFF) 48 – 96 (art. 0170 / 0171)
ON – OFF minimum connection time 30 minutes (daily) 15’ (item 0170 – 0171)
approx. 3.5 hours (weekly)
Displays mechanical tappets ring
Max commutable power 3500 VA (for individual contact)
Max cross-section of wires to terminals 2.5 mm2
Protection degree (IP) IP 20 – IP 30 (with terminal covers)
IP 40 (on rear of switchboard)
Type of output terminals with captive screw
Insulation class II
Charge reserve approx 150 h max (max 100 h mod. 0171)
Type of reserve NiCd rechargeable battery
Time tolerance + – 1 sec/day
Operating temperature limits -10°C / +50°C
Storing temperature -10°C / +50°C
Type of installation DIN rail / wall-mounted / on rear of switchboard
Housing thermoplastic – grey RAL 7035
Type of use civil / tertiary / industrial
Controls mechanical tappets ring selector switch: fixed ON / timer position
Clock setting accuracy mechanical with reference index
Programming mechanical key ring
Dimensions (L x W x H) mm 1DIN 17.5 x 60 x 128 – 2DIN 35 x 60 x 116
4DIN 70 x 60 x 116
