1IC 7245

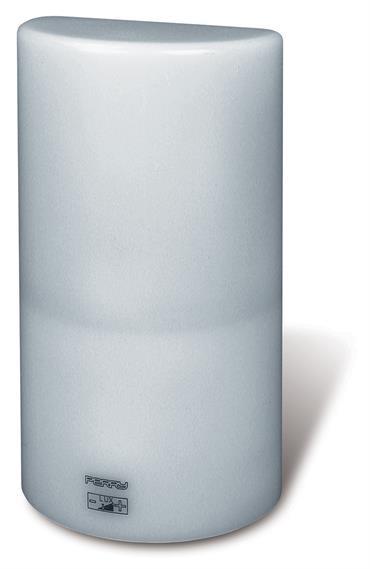

Photocell lighting control switch model “FEBO” for wall-mounting and/or pole installation
The factory 10 LUX calibration prevents difficult interventions by the installer
TECHNICAL SPECIFICATIONS
Power supply 230V a.c. 50 / 60Hz
Outdoor installation
Output 1 polarized NO contact: 16 (2) A/250Va.c.
Connection with cables up to 2.5 mm2
Wiring with shielded cable diameter 7-11 mm
Pre-calibrated at the factory at 10 Lux ± 20%
Intervention threshold adjustment trimmer, 2 – 200 Lux
Threshold signalling LED
Anti-UV opaline housing
Protection degree IP 65

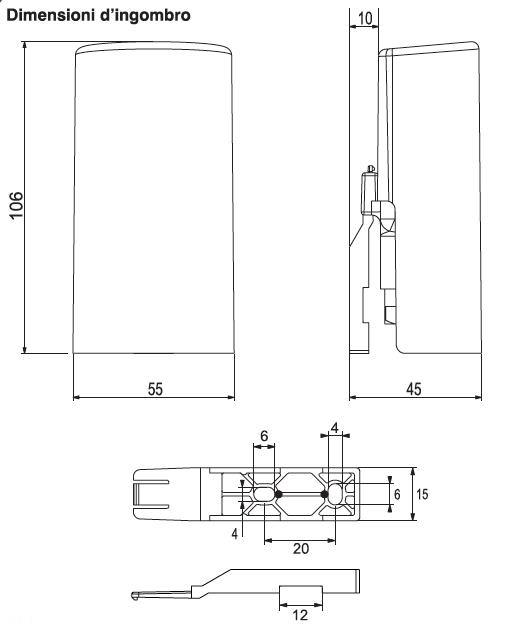

Dimensions (L x W x H) 55 x 45 x 106 mm
