Περιγραφή

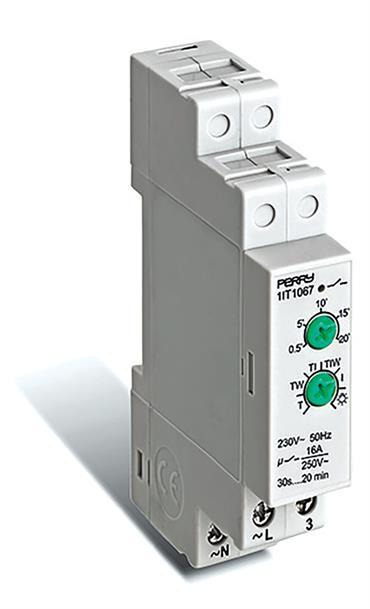

1IT 1067
TECHNICAL SPECIFICATIONS
Power supply 230V a.c. +/- 10%, 50 Hz
Type of output relay with NO single-pole polarized
contact 16A / 250V a.c.
Time adjustment: from 30 seconds to 20 minutes

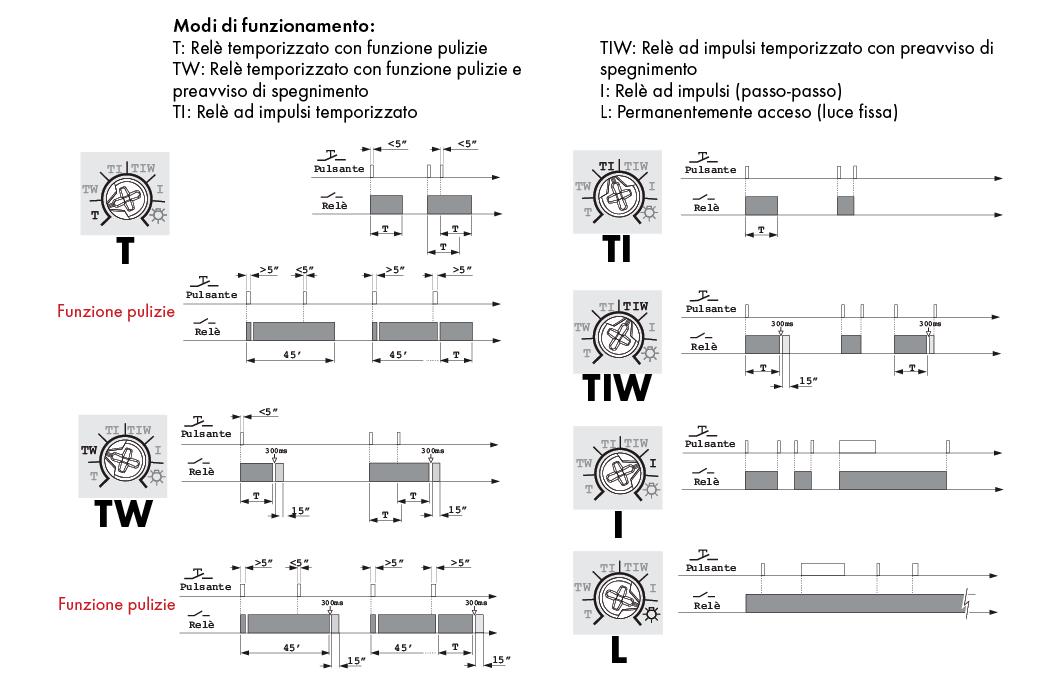

Switch off warning in the TW and TWI operation modes
Ability to activate stair cleaning function in the T and
TW operation modes
Maximum wire section at terminals: 1 mm² ÷ 6 mm²
Protection degree: IP 20
Operating temperature limits of module: – 10 °C ÷ +55 °C
Storage temperature limits: – 20 °C ÷ +65 °C
Type of installation: DIN rail
Maximum current consumption of illuminated
pushbuttons 150mA with overload protection
CE reference standards: LVD/EMC EN60669-2-3
EN60669-2-1

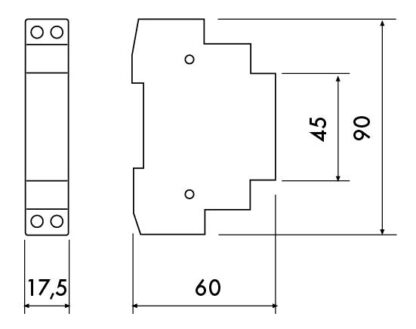

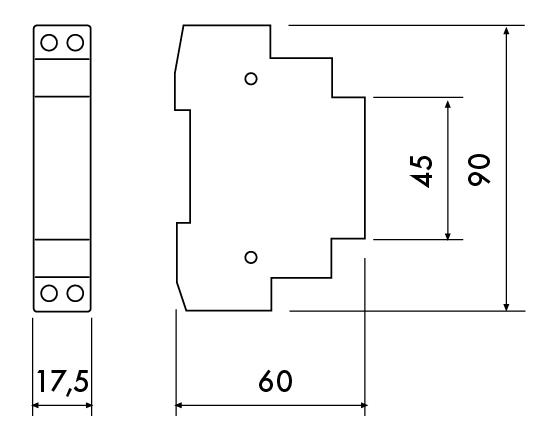

Dimensions (L x W x H): 17,5 x 60 x 90 mm
