Περιγραφή

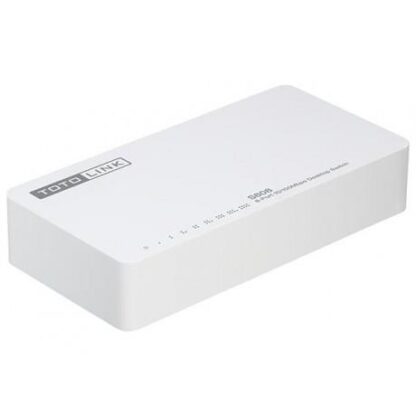

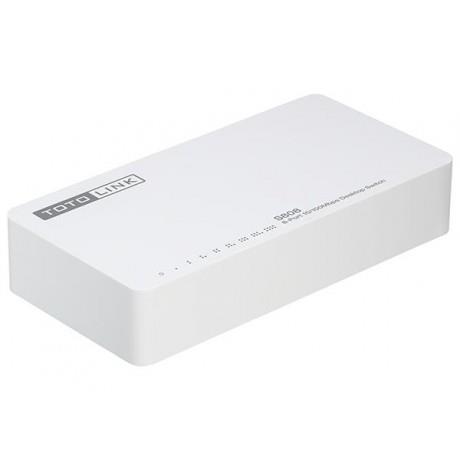

S808 is a Fast Ethernet Switch that designed for general home or small office use. It provides 8 10/100Mbps ports and all ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, the mini desktop design is easy carrying for portable use. So it is an ideal solution for small groups.
Features

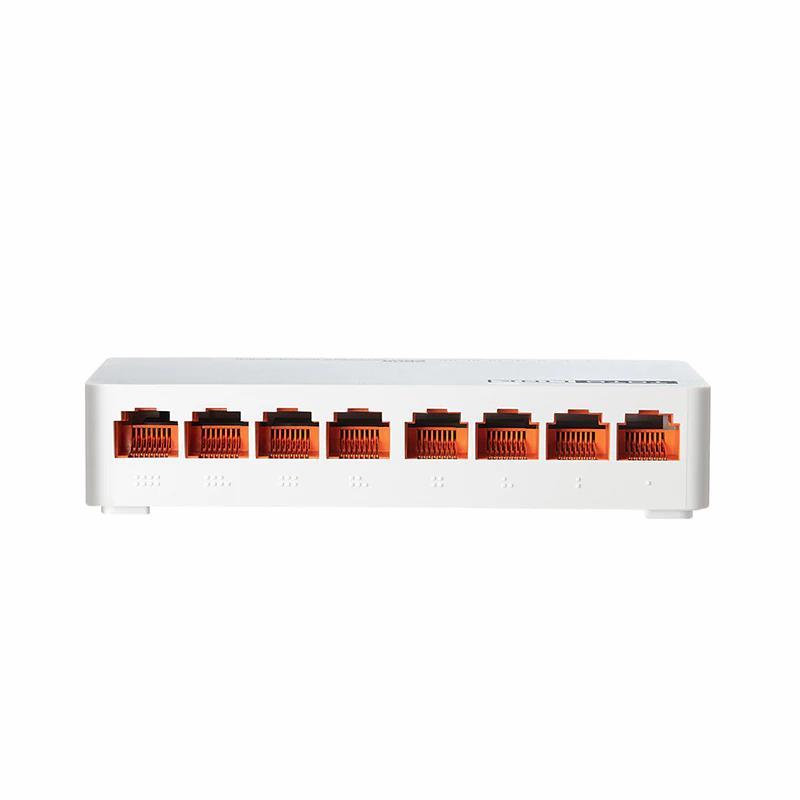

- 8*10/100Mbps auto-negotiated RJ45 ports.
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.
- Mini plastic design supports desktop placement or wall mount.
- 1K entry MAC address table and automatic address learning.
- Auto-MDI/MDIX eliminates the need for crossover cables.
- Store- and-Forward switching scheme.
- Performs non-blocking full wired speed.
Standards
IEEE 802.3,
IEEE 802.3u,
IEEE 802.3x
Interface: 8*10/100Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX)
MAC Address Learning: Auto-learning, auto-aging
MAC Address Table: 1K
Network Media: 10BASE-T: UTP Cat 3 or above cable, 100BASE-TX: UTP Cat 5, 5e or above cable
