TECHNICAL SPECIFICATIONS
Power supply voltage 230V a.c. 50 – 60Hz
Contact rated data potential-free NC contact
16 (2) A / 250V a.c.
Max program number (ON-OFF) 20 (matchable in blocks of days)
ON – OFF minimum connection time 1 second

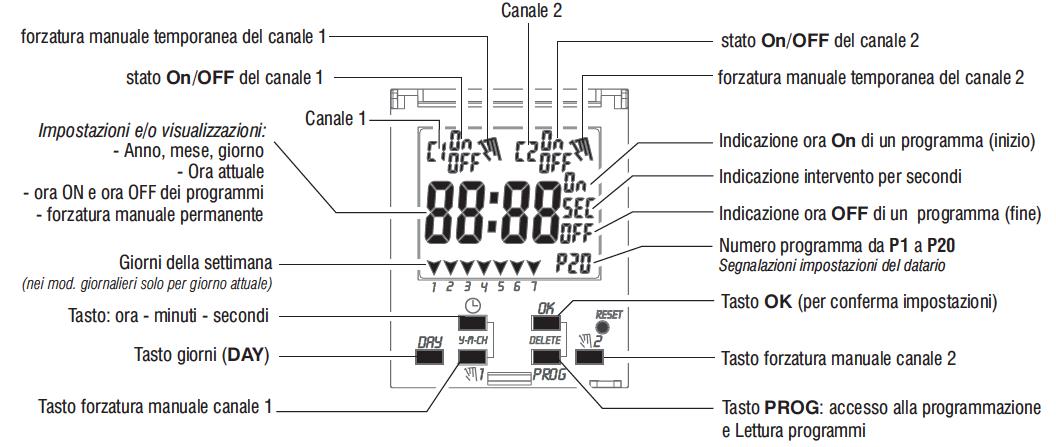

Displays 1” 1/3 backlit LCD display
Max. commutable power 3500 VA (for individual contact)
Power: Incandescent LPs 2300 W
Power: Fluorescent tube LPs, not compensated 1000 W
Power: Parallely comp. fluorescent tube LPs 500W (tot capacity 70 μF)
Power: Compact, fluorescent LPs 600W
Max cross-section of wires to terminals 6 mm2
Protection degree (IP) IP 20 – IP 40 (on rear of switchboard)
Type of output terminals with captive screw
Insulation class II
ON / OFF relay signalling ON / OFF in LCD display
Charge reserve max 15 days
Type of reserve NiMH rechargeable battery
Time tolerance + – 0.5 sec / day
Operating temperature limits 0°C / +50°C
Storing temperature -10°C / +50°C
Type of installation DIN rail / on rear of switchboard
Housing thermoplastic – grey RAL 7035
Type of use civil / tertiary / industrial
Controls programming keys, ON / OFF manual override key
Clock setting accuracy digital for hours / minutes
Daylight saving time change for 4 geographic ares
Digital programming for hours / minutes / seconds

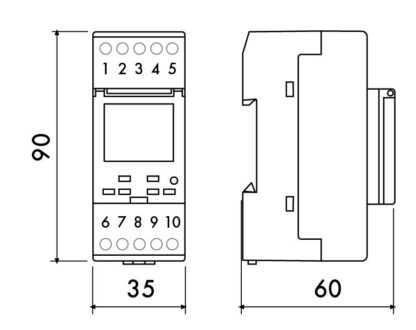

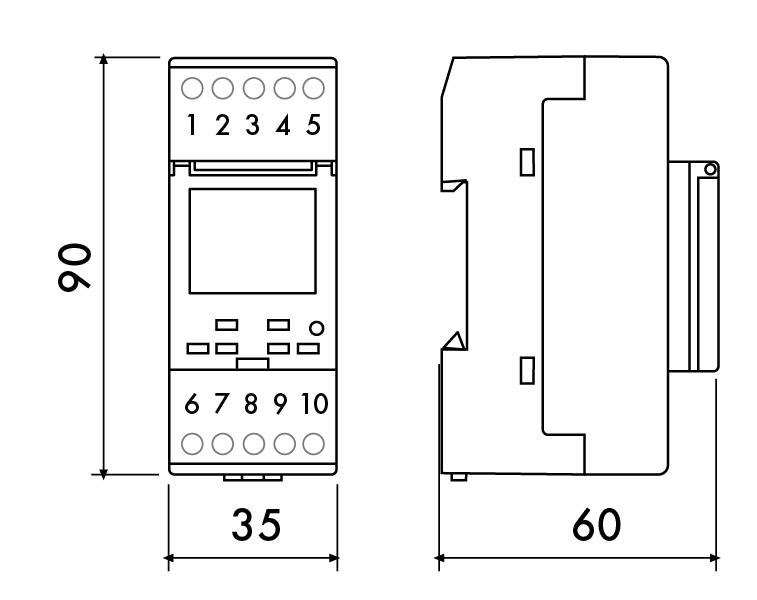

Dimensions (L x W x H) mm 35 x 60 x 90
