Περιγραφή

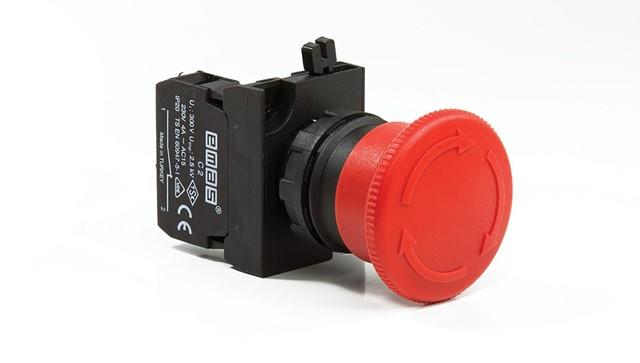

Μπουτόν μανιτάρι Φ40 με τρύπα Φ22 με 1 επαφή NC και μανδάλωση.
Product
Control Unit
Model
Emergency
Type
Turn to Release
Contact
1NC
Color
Red
Dia
22 mm
Head Dia
40 mm
Current (Ie)
4 A (230V AC)
Usage Category
AC 15
Mechanical Life (Min Qty)
500000
Electrical Life (Min Qty)
100.000 Qty
Operating Frequency (On-Off/Hour)
Mech. 1200 Elec. 1200
Insulation Voltage (Ui)
300V
Impulse Withstand Voltage (Uimp)
2.5 kV
Dielectric Strength (Body-Contact)
2.500V AC
Dielectric Strength (Contact-Contact)
1.500V AC
Isolation Resistance
10 MΩ min. (500V DC)
Operating Temperature
-15 / + 80 °C
Pollution Degree
3
Protection Degree
IP65
Contact Material
AgNi
Cable Section
1.5-2.5 mm2
Screw Torque
1,5 Nm
Short Circuit Breaking Capacity (Ics)
1 kA
Serial
CP Series Plastic
