Product

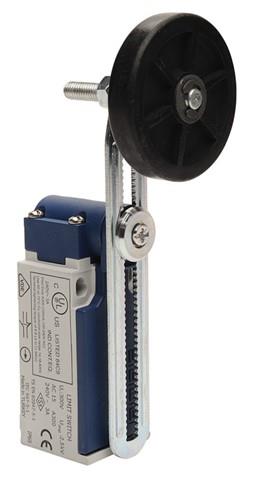

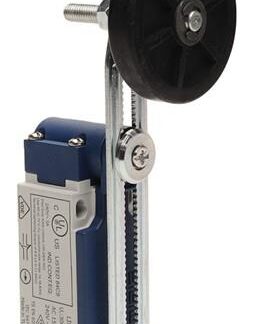

Limit Switch
Feature
Adjustable Roller
Contact
1NO+1NC
Actuator
Adjustable Roller Arm
Actuator Dia
50 mm
Current (Ie)
3 A (240V AC)
Usage Category
AC15
Mechanical Life (Min Qty)
10000000
Electrical Life (Min Qty)
1000000
Operating Frequency (On-Off/Hour)
Mech. 3000 Elec. 1800
Insulation Voltage (Ui)
500 V
Impulse Withstand Voltage (Uimp)
6 kV
Dielectric Strength (Body-Contact)
1.890V AC
Dielectric Strength (Contact-Contact)
1.890V AC
Isolation Resistance
10 MΩ (500 V DC)
Operating Temperature
-25 / + 80 °C
Pollution Degree
3
Protection Degree
IP65
Contact Material
AgNi
Cable Section
1-2.5 mm2
Screw Torque
1.5Nm
Short Circuit Breaking Capacity (Ics)
1 kA
Serial
L5 Plastic Body
Contact Action
Snap Action
Actuator Material
Rubber
Product Code
L5K13MEL123A
Standard
TS EN 60947-5-1 UL 508 VDE 0660
Certificate
(Contact Block)
(Contact Block)
