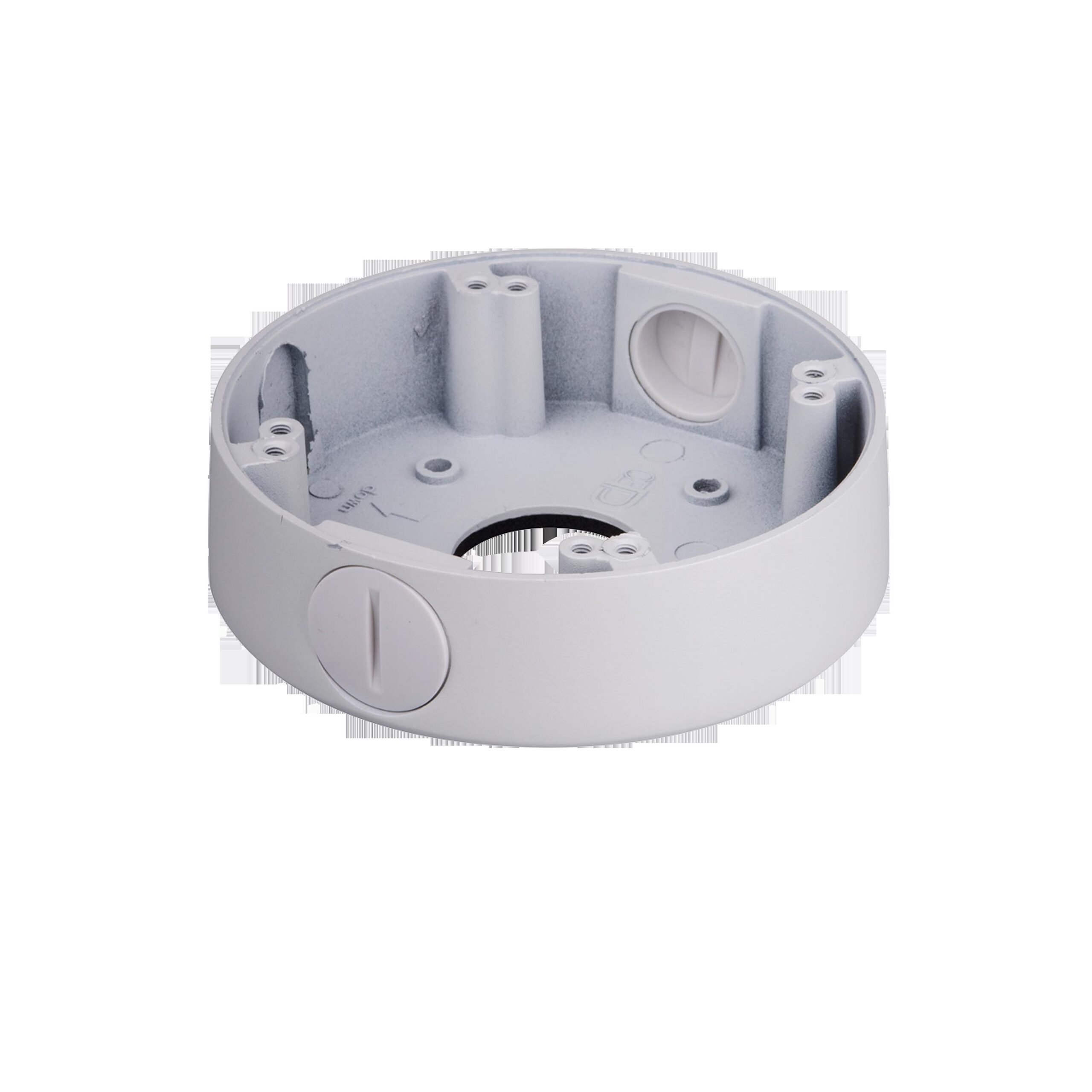

DAHUA PFA13B JUNCTION BOX ΓΙΑ DOME V/F ΧΩΡΙΣ ΘΟΛΟ

Κωδικός προϊόντος: 109290
robot
Κωδικός εργοστασίου
02190268
cube
Κωδικός μοντέλου
PFA13B

Περιγραφή

HAC-HDW1220M


2MP HDCVI IR Eyeball Camera


> Max 30fps@1080P


> HD and SD output switchable

> 3.6mm fixed lens (2.8mm, 6mm optional)
> Max. IR length 30m, Smart IR
> IP67, DC12V







































































































Camera


Image Sensor


1/2.9″ CMOS


Effective Pixels


1920(H)×1080(V), 2MP


Scanning System


Progressive


Electronic Shutter Speed


PAL: 1/25~1/100000s


NTSC: 1/30~1/100000s


Minimum Illumination


0.02Lux/F2.0, 0Lux IR on


S/N Ratio


More than 65dB


IR Distance


Up to 30m (98feet)


IR On/Off Control


Auto / Manual


IR LEDs


12


Lens


Lens Type


Fixed lens / Fixed iris


Mount Type


Board-in


Focal Length


3.6mm (2.8mm, 6mm Optional)


Max Aperture


F2.0


Angle of View


H: 82.8° (106°/51.2°)


Focus Control


N/A


Close Focus Distance


800mm (500mm/1900mm)


31.5 (19.7/74.8)


Pan / Tilt / Rotation


Pan/Tilt/Rotation


Pan: 0° ~ 360°


Tilt: 0° ~ 90°


Rotation: 0° ~ 360°


Video


Resolution


1080P (1920×1080)


Frame Rate


25/30fps@1080P, 25/30/50/60fps@720P


Video Output


1-channel BNC high definition video output / CVBS video output (Can switch)


Day/Night


Auto (ICR) / Manual


OSD Menu


Multi-language


BLC Mode


BLC / HLC / DWDR


WDR


DWDR


Gain Control


AGC


Noise Reduction


2D


White Balance


Auto / Manual


Smart IR


Auto / Manual

















































Certifications


Certifications


CE (EN55032, EN55024, EN50130-4)


FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)


UL (UL60950-1+CAN/CSA C22.2 No.60950-1)


Interface


Audio Interface


N/A


Eelectrical


Power Supply


12V DC ±25%


Power Consumption


Max 2.8W (12V DC, IR on)


Environmental


Operating Conditions


-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH


* Start up should be done at above -40°C (-40°F)


Storage Conditions


-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH


Ingress Protection &Vandal Resistance


IP67


Construction


Casing


Aluminium


Dimensions


Φ93.4mm×79.4mm (Φ3.68″×3.13″)


Net Weight


0.28kg (0.62lb)


Gross Weight


0.35kg (0.77lb)
