Περιγραφή

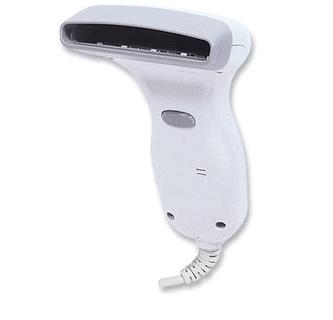

PS/2 CCD Barcode Scanner
Barcode Scanner
- * 80mm read width
- * Connects directly to keyboard port
- * Scan rate .33 scans/sec
- * CCD resolution .2160 pixels
- * Bar code selections:
Code11, Code32, Code39, Code93, Code128, Coda Bar, UPC-A, UPC-E, EAN-8, EAN-13, MSI/Plessey, CIP39, Telepen, China Postal Code, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5 - * Easy to set up and use
80 mm CCD BAR CODE SCANNER SPECIFICATION MODEL NO. B22-151 WIDTH 80 mm OPTIC-ELECTRONIC DESIGN FEATURE Image Sensor High Resolution Charge-coupled Devices (CCD) Liner Image Sensor CCD Resolution 2160 pixels Light Source Red LED Array at 660nm PERFORMANCE CHARACTERISTICS Scan Repetition Rate 33 scans/sec PCS Value 0.45 Narrow Bar Resolution 0.100 mm Reading Angle 0 deg. (Forward) to 90 deg. (Backward) Depth of Field 0 – 25 mm Read Confirmation White Light LED Indicator, Programmable Volume Buzzer Max. Code Length 80 mm Bar Code Format Code 11, Code 32, Code 39, Code93, Code128, Coda Bar,UPC-A, UPC-E, EAN-8, EAN-13, MSI/Plessey, CIP39, Telepen, China Postal Code, Interleaved 2of 5, Industrial 2 of 5, Matrix 2of 5 Keyboard Types US, French, German, Spanish, Italian, UK, Swiss,Belgium,Netherlands,etcοΏ½K 20kinds Advanced Features User Programmability of data format, Code Identification, Prefix, Suffix Reading Protocol Trigger Switch, Decoder Build-in Type PHYSICAL CHARACTERISTICS Case Material High Impact ABS Plastic with Rubber end Piece Cable 80mm-RJ Type Phone Jack Cable, Straight Connector Cable PS2,Keyboard wedge, RS232, Wand, TTL, PS2,Mac,NEC Net Weight Approx. 490g (17.5 oz) ELECTRICAL REQUIREMENT Power Requirement +5VDC οΏ½οΏ½ 5% Power Consumption Operation : 100mA οΏ½οΏ½ 10% ; Stand by : 40mA οΏ½οΏ½ 10% ENVIRONMENT Temperature Operation : 0οΏ½J to 50οΏ½J(32F to 122F) ; Storage : -20οΏ½J to 70οΏ½J(-22F to 158F) Relative Humidity 20 – 85% RH (non-condensing) Approval Complies with FCC Class A Standard,
