1IO 0032

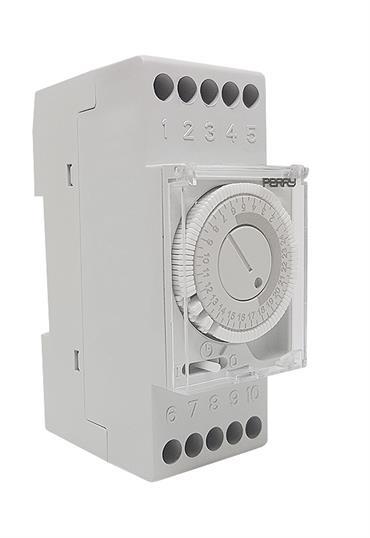

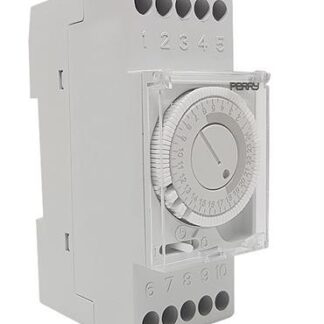

Daily time switch with tappets and charge reserve – 2 DIN
TECHNICAL SPECIFICATIONS
Power supply voltage 230V a.c. 50 – 60Hz
Contact rated data 16 (4) A / 250V a.c.
Max program number (ON-OFF) 96
ON-OFF minimum switching time 15 minutes
Visualizations mechanical tappets ring
Max commutable power 3500 VA (for every single contact)
Max cross-section of cables to terminals 2.5 mm2
Degree protectoin (IP) IP 30
Type of output terminals with captive screws
Insulation class II
Charge reserve max 150 hours approx
Type of reserve NiCd rechargeable battery
Time tolerance ± 1 sec / day
Operating temperature limits -10°C / +50°C
Storing temperature -10°C / +50°C
Type of installation DIN rail / wall mounted / rear of switchboard
Housing thermoplastic – RAL 7035 grey
Type of use civil / tertiary / industrial

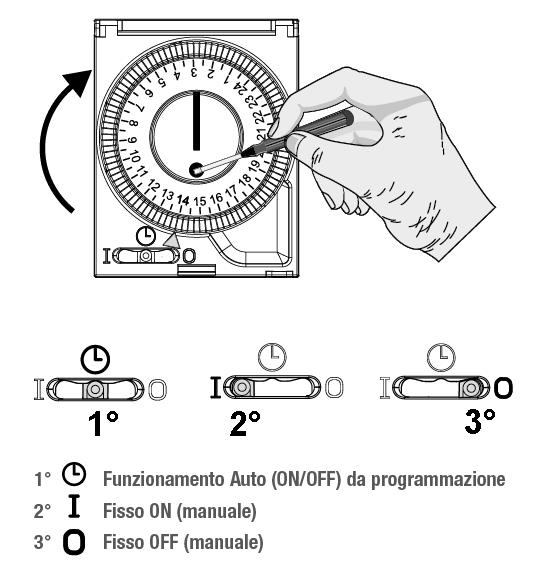

Controls mechanical tappets ring selector: timer position / fixed OFF
Clock setting accuracy mechanical with reference index
Programming mechanical key ring (15’ blocks)
Dimensioni (L x W x H) mm 35 x 60 x 90
Accessories
1PA KTMP2
1PA KTMP4
