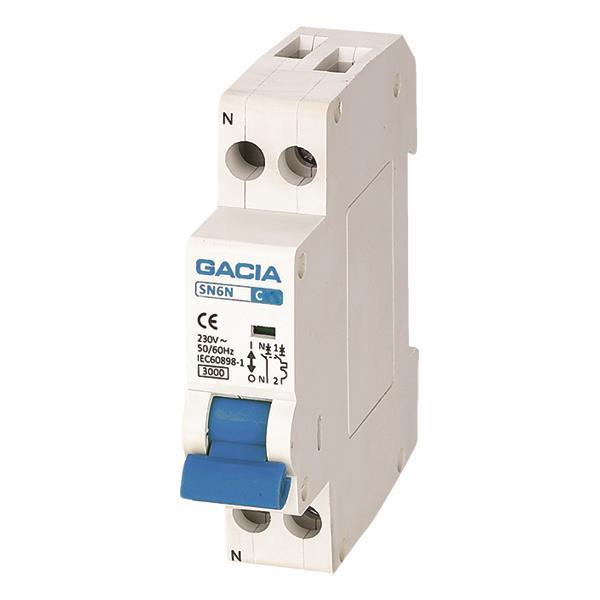

Description
Product Color: Λευκό/ White
|Cable Cross Section: 2,5mm
|Busbar mm (Gacia): 16
|Poles (Gacia): 1P
|Supply Voltage (V): 230V
|Operating Frequency (Hz): 50/60Hz
|Contact Position Indication (Gacia): Ναι/ Yes
|Amperage (A): 20A
|Rated Short Circuit Breaking Capacity (Gacia): 3kA
|Breaking Capacity (Gacia): 3kA
|Ingress Protection (IP): IP20
|Length: 77,5mm
|Width: 17,8mm
|Height: 83mm
|Product Gross Weight (Kg): 0,110kg
|Packing (pcs): 12\120
|Years of Warranty: 2 Χρόνια/ 2 Years
|Certifications: Ναι/ Yes
|Product Standard (Gacia): IEC/EN6898-1
|CE Mark: Ναι/ Yes
|Operating Temperature °C: -25°C – +50°C
|Product Material: Πλαστικό/ Plastic
|Service Life (Gacia): Μηχανικός: 10000 Ηλεκτρικός: 4000/ Mechanical: 10000 Electrical: 4000
|Curve (Gacia): C
|Terminal Connection Type (Gacia): Καλώδιο/ Wire
|
