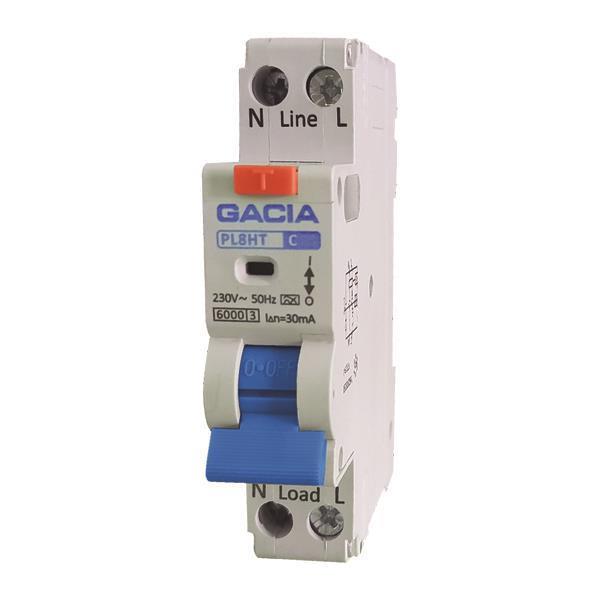

Description
Product Color: Λευκό/ White
|Poles (Gacia): 1P+N
|Supply Voltage (V): 230V
|Operating Frequency (Hz): 50/60Hz
|Contact Position Indication (Gacia): Ναι/ Yes
|Surge Protection: Όχι/ No
|Amperage (A): 10A
|Rated Short Circuit Breaking Capacity (Gacia): 6kA
|Breaking Capacity (Gacia): 6kA
|mA (Gacia): 30mA
|Ingress Protection (IP): IP20
|Length: 72mm
|Width: 18mm
|Height: 82mm
|Product Gross Weight (Kg): 0,180kg
|Packing (pcs): 12\120
|Years of Warranty: 2 Χρόνια/ 2 Years
|Certifications: Ναι/ Yes
|Product Standard (Gacia): IEC/EN 61009-1
|CE Mark: Ναι/ Yes
|Operating Temperature °C: -25°C – +50°C
|Product Material: Πολυαμίδιο/ Polyamide
|Service Life (Gacia): Μηχανικός: 10000 Ηλεκτρικός: 4000/ Mechanical: 10000 Electrical: 4000
|Curve (Gacia): B
|Terminal Connection Type (Gacia): Καλώδιο/ Wire
|Residual Current Protection Type (Gacia): Ηλεκτρονικός/ Electronic
|Residual Current Working Type (Gacia): A/AC
|Fault Indication (Gacia): Όχι/ No
|
