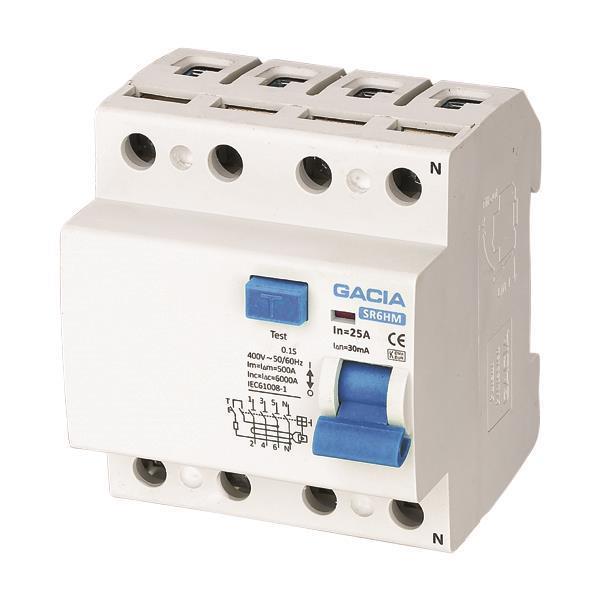

Description
Product Color: Λευκό/ White
|Cable Cross Section: 10mm
|Busbar mm (Gacia): 25
|Poles (Gacia): 4P
|Supply Voltage (V): 400V
|Operating Frequency (Hz): 50/60Hz
|Contact Position Indication (Gacia): Ναι/ Yes
|Surge Protection: Ναι/ Yes
|Amperage (A): 40A
|Rated Short Circuit Breaking Capacity (Gacia): 6kA
|Breaking Capacity (Gacia): 6kA
|mA (Gacia): 30mA
|Ingress Protection (IP): IP20
|Length: 77,5mm
|Width: 70mm
|Height: 81mm
|Product Gross Weight (Kg): 0,340kg
|Packing (pcs): 3\30
|Years of Warranty: 2 Χρόνια/ 2 Years
|Certifications: Ναι/ Yes
|Product Standard (Gacia): IEC61008-1
|CE Mark: Ναι/ Yes
|Operating Temperature °C: -25°C – +50°C
|Product Material: Πλαστικό/ Plastic
|Service Life (Gacia): Μηχανικός: 10000 Ηλεκτρικός: 4000/ Mechanical: 10000 Electrical: 4000
|Curve (Gacia): C
|Terminal Connection Type (Gacia): Καλώδιο, Γέφυρα Χαλκού Τύπου L & U/ Wire, L & U Type Busbar
|Residual Current Protection Type (Gacia): Ηλεκτρομαγνητικός/ Electromagnetic
|Residual Current Working Type (Gacia): A
|
